Pre-stained Protein Ladder, Broad Range (8–180 kDa)
Pre-stained Protein Ladder, Broad Range (8–180 kDa)
Pre-stained Protein Ladder, Broad Range (8–180 kDa)
Pre-stained Protein Ladder, Broad Range (8–180 kDa)

Pre-stained Protein Ladder, Broad Range (8–180 kDa)

Ready-to-use pre-stained protein ladder containing 10 recombinant proteins (8-180 kDa) with three chromophores; on SDS-PAGE, most bands are blue except the 70 kDa orange-red and 8 kDa green reference bands, and this product cannot be heated above room temperature.

Range Type
  • Broad Range
Size Range
    8-180 kDa
Band Sizes
    PLF1001 contains 10 protein bands of 8, 17, 25, 33, 43, 55, 70, 100, 130, and 180 kDa.
Catalog Number
    PLF1001
$160.00
Need support?

Shipping To:
United States

Product Information

Catalog Number
    PLF1001

Downloads & Supports

Range Type
  • Broad Range
Size Range
    8-180 kDa
Reference Bands
    8, 70 kDa
Stain Type
    Orange, Green, Blue
Number of Bands
    10
Storage
    4°C for 2 months, -20°C for 2 years
Application
  • WB
  • SDS-PAGE
Storage Buffer
    20m MTris-PO4 (pH7.5),
    2m MEDTA.2 Na, 4 M Urea,
    1.5% (W/V) SDS, 2m MDTT
    15% (V/V) Glycerol,
    0.1% (V/V) Proclin 300
Recommended loading volume
    Mini gel electrophoresis: 5μL per well
    Large gel electrophoresis: 10μL per well
    Use the same volumes for Western blotting.
ProtocolsRequest COAAlgent Product Guarantee

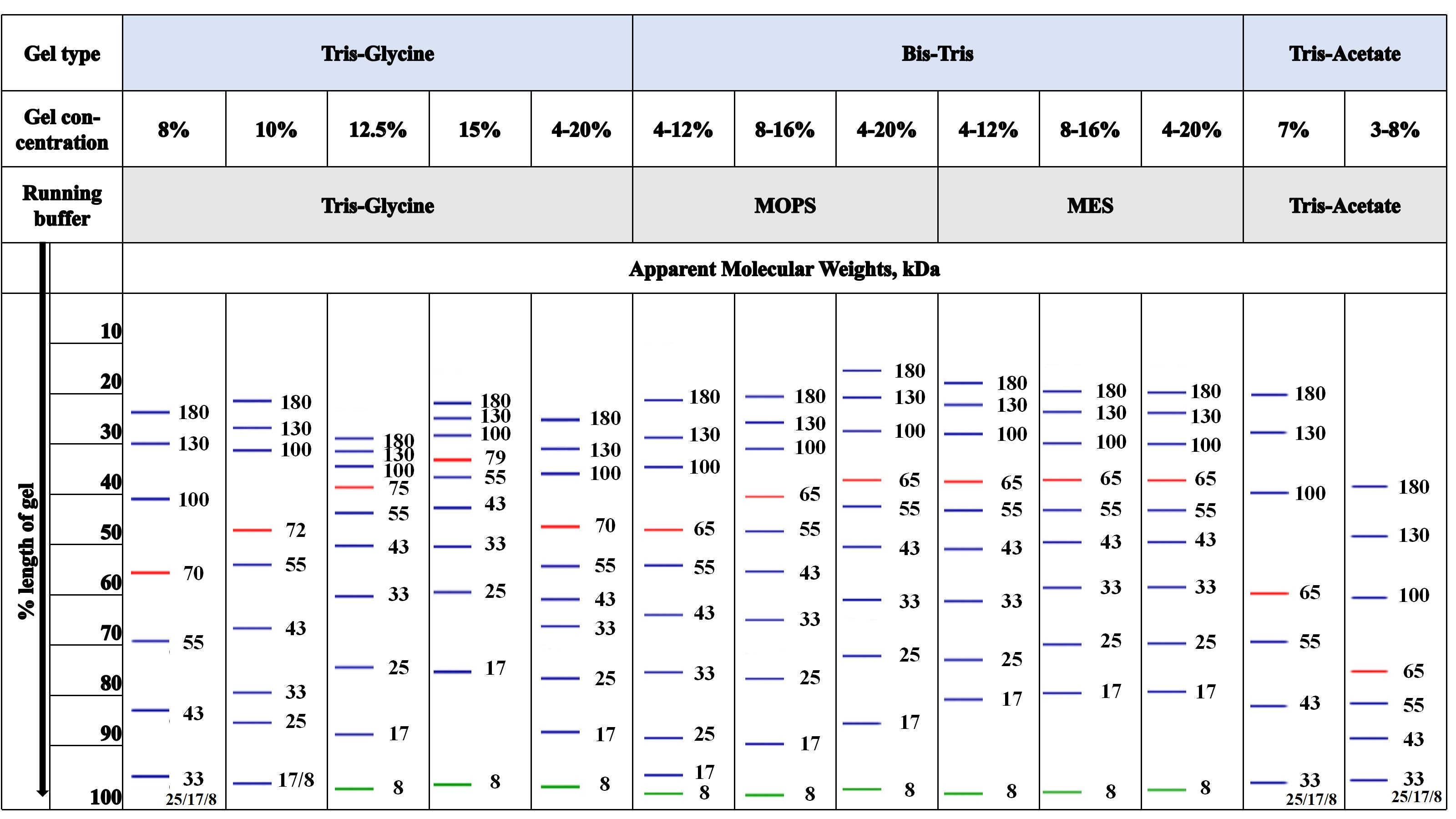

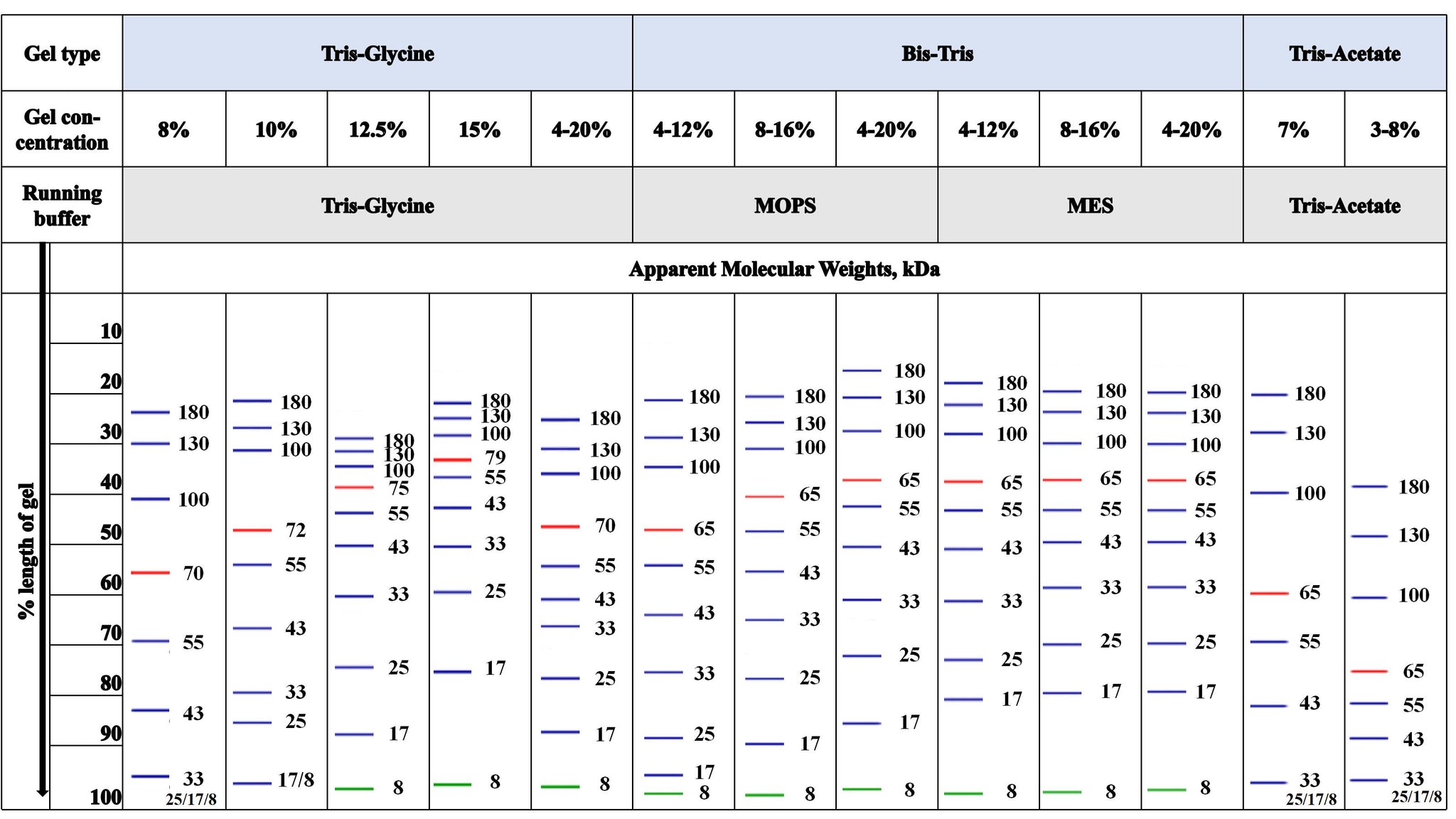

Product Image

Images are from a 4-20% Tris-glycine gel (SDS-PAGE) and subsequent transfer to membrane.
The apparent molecular weight of each protein (kDa) has been determined by calibration of each protein against an unstained protein ladder in specific electrophoresis conditions. Migration patterns were determined using commercial precast mini gels.
